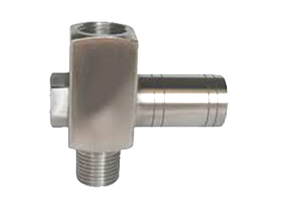

Gauge Savers

Features:

Compact Design

Automatic Positive Action

Easy and quick In-Line Installations in the field

Repeatable performance

Prevents damage to pressure gauge from sudden surge

½” Size is standard

Maximum working pressure up to 10000 PSI bar

Set pressure range from 1 bar to 400 Bar

Operating temperature up to 100 deg. centigrade

Offered with Viton O-ring as a standard

Variety of end connections include NPT, ISO/BSP Threads

Available with NACE MR-01-75 compliance

Protective caps are provided for ingress protection.

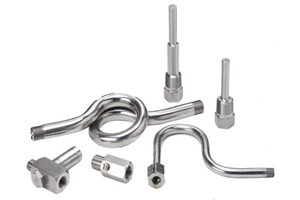

Features:

Rugged Design

Available in ¼”,3/8” and ½” size nominal diameters

Option of welded and seamless construction

Pig tail, coil and U forms based on application

Available with adaptor weld type connection or direct threads on pipe

Available in MOC Brass, Carbon Steel A53, A106, , Stainless Steel 304, 316 in schedule 40, 80, 160 and XX. Other material of construction is available upon request.

Maximum pressure up to 6000 PSI

Variety of end connections include NPT, ISO/BSP Threads

Available with NACE MR-01-75 compliance

Protective caps are provided for ingress protection



Features:

Sizes available up to 2” pipe in schedule 40 and schedule 80

Maximum working pressure up to 6000 PSI

Maximum temperature up to 450 deg. Centigrade with Graphoil packing material

Available with inlet options as flanged or threaded

Distribution port options are needle valves or ball valves in size ¼”,1/2” ¾” and 1”

Available in variety of Material of Construction like CS, SS304, SS316

Variety of valve end connections include NPT, ISO/BSP Threads

Different type of designs selections to suit technical requirements

Available with NACE MR-01-75 compliance

Offered with Mounting brackets / clamps

Welding will be as per ANSI B 16.11

Optionally Radiography and DP tests can be offered

100% hydro tested prior to shipment

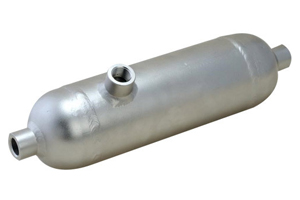

Features:

Sizes available up to 6”

Fabricated from Seamless pipes

Fabricated as per ASME standards

Wide range of operating pressure rating

Operating temperature up to 400 deg. centigrade

Available with customized socket weld coupling (ANSI B 16.11) configurations

Variety of end connections include NPT, ISO/BSP Threads, welded adaptors

Multiple coupling selections to suit technical requirements

Argon welded as per ASME SEC IXby qualified welding personnel

Cleaned from inside to measure correct liquid volume

Offered with Shot blasted, painted or mirror like surface finish

Protective caps are provided for ingress protection

Available with NACE MR-01-75 compliance

Offered with complete relevant testing requirements

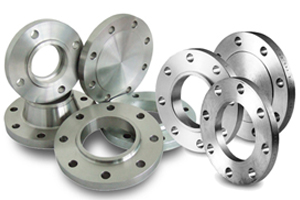

Features:

Sizes available up to 24”

Wide range of operating pressure based on the class rating

Operating temperature up to 500 deg. centigrade

Available with customized socket weld coupling (ANSI B 16.11) configurations

Variety of Threaded connections include NPT, ISO/BSP Threads, welded adaptors

Available in BLRF,SORF, WNRF types

Cleaned from inside to measure correct liquid volume

Protective caps are provided for threads / ingress protection

Available with NACE MR-01-75 compliance

Offered with complete relevant testing requirements
