Instrumentation Products
Features:
Round Body 2 piece floating ball design
Sizes available from 1/8” to 2”
Working Pressure up to 2000 psig with Brass MOC and up to 3000 PSI with SS MOC
Temperature from -170C to 650C with PTFE seats and packing
Brass,Carbon Steel, SS 304, SS 316, Monel 400 and Duplex Material
Improved Design and Robust Construction
Guaranteed Performance and reliability for inline applications
Optimized packing design allows minimum dead space
Integral ball stem is machined from bar stock for improved performance
Packing options are available
Available with NACE MR-01-75 compliance
Variety of end connections include Male/Female NPT and ISO threads
Thread caps provided for ingress dust protection.

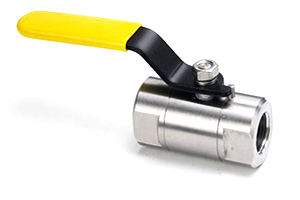

2 Way 3000 PSI
Features:
Square body 3 piece floating ball design
Sizes available from 1/8” to 1”
Working Pressure up to 6000 psigwith SS MOC
Temperature from -170C to 650C with PTFE seats and packing
SS 304, SS 316, Monel 400 and Duplex Material
Compact Design and Robust Construction
Guaranteed Performance and reliability for inline applications
Optimized packing design allows minimum dead space
Ball stem is machined from bar stock for improved performance
Packing options are available
Available with NACE MR-01-75 compliance
Variety of end connections include Male/Female NPT, Tube OD and ISO threads
Thread caps provided for ingress dust protection
2 Way 6000 PSI
Features:
Square body 3 piece floating ball design
Sizes available from 1/8” to 1”
Working Pressure up to 6000 psigwith SS MOC
Temperature from -170C to 650C with PTFE seats and packing
SS 304, SS 316, Monel 400 and Duplex Material
Compact Design and Robust Construction
Guaranteed Performance and reliability for inline applications
Optimized packing design allows minimum dead space
Ball stem is machined from bar stock for improved performance
Panel Mounting Option
Directional Nylon Handle
Packing options are available
Available with NACE MR-01-75 compliance
Variety of end connections include Male/Female NPT, Tube OD and ISO threads
Thread caps provided for ingress dust protection

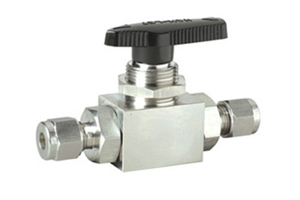

I Series 2 Way

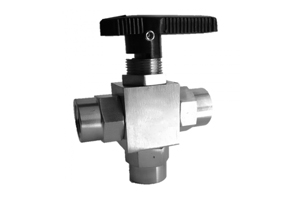

I Series 3 Way
Features:
Square body floating ball design
Sizes available from 1/8” to 1”
Working Pressure up to 4000 psig with SS MOC
Temperature from -170C to 650C with PTFE seats and packing
SS 304, SS 316, Monel 400 and Duplex Material
Compact Design and Robust Construction
Guaranteed Performance and reliability for inline applications
Optimized packing design allows minimum dead space and low operating torque
Ball stem is machined from bar stock for improved performance
Panel Mounting Option
Directional Nylon Handle
Packing options are available
Available with NACE MR-01-75 compliance
Variety of end connections include Male/Female NPT, Tube OD and ISO threads
Thread caps provided for ingress dust protection
