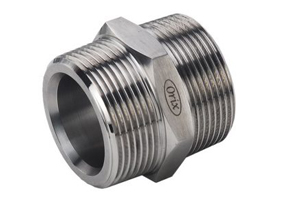

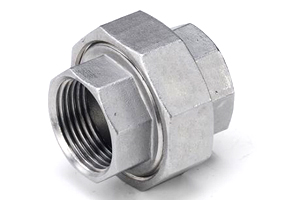

Pipe Fitting

4 - 4

<

>

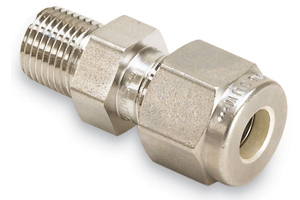

Tube Fitting

5 - 5

<

>

Features:

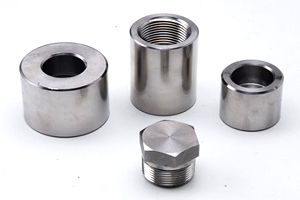

Size available from 1/16″ through 2″ in wide variety of thread combinations for easy transition from one thread design to other.

Quality and reliability for instrumentation applications

Working pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.

Pipe threads utilized are National Pipe Taper (NPT) as a standard and meet the requirements of ANSI B1.20.1.

Straight bodies machined from applicable ASTM bar stock and shaped bodies are machined from forgings.

Materials – 316 Stainless Steel, Brass and Steel. (Optional material upon request)

All exposed threads protected with caps to prevent damage

Features:

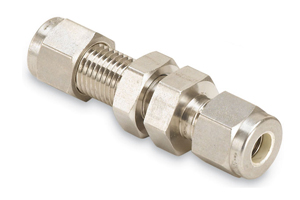

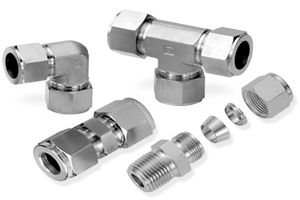

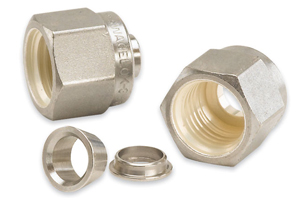

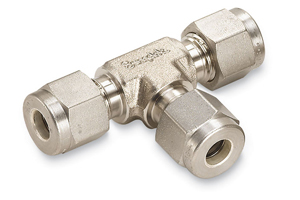

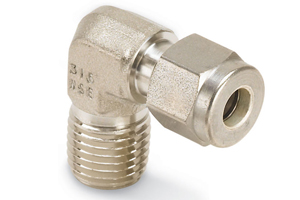

Available in numerous configurations and size up to two inches, Minaa Al Arab tube fittings are made up of four parts consisting of a body, front ferrule, back ferrule, and nut. The fitting make up with compression type two ferrule technology is leak tight and consistent as the design compensates for any tolerances in tube outer diameter, wall thickness, and material hardness.

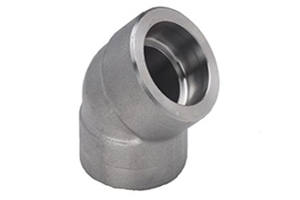

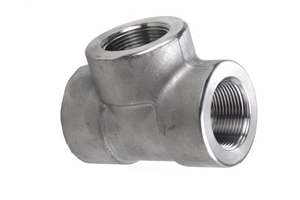

Forged / Weld Fitting

5 - 5

<

>

Features:

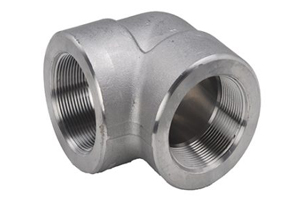

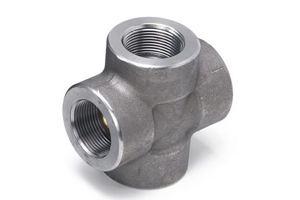

• These are manufactured to meet several ASTM standards and are manufactured in accordance with ASME B16.11. The B16.11 standard covers pressure-temperature ratings, dimensions, tolerances, marking, and material requirements for forged carbon and alloy steel.

• Acceptable material forms are forgings, bars, seamless pipe, and seamless tubes which conform to the fittings chemical requirements, melting practices, and mechanical property requirements of ASTM A105, A182, or A350.

• These socket weld fittings are available in three pressure ratings: Class 3000, 6000 and 9000.

• Machined from Solid Forging with homogeneous grain structure

• Absolute Concentricity with uniform wall thickness

• Minimum Fluid resistance due to smooth interior surface finish

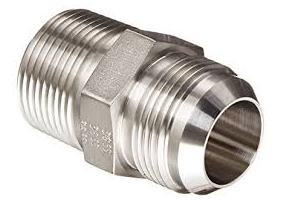

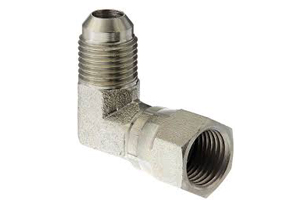

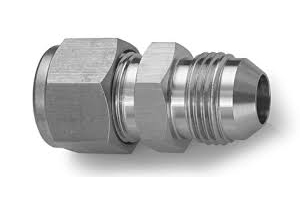

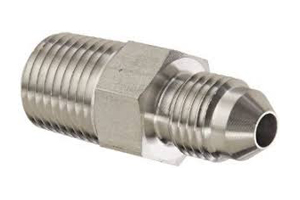

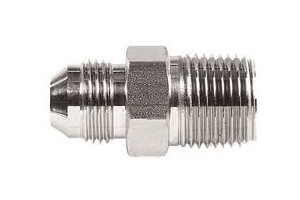

JIC Flare Fitting

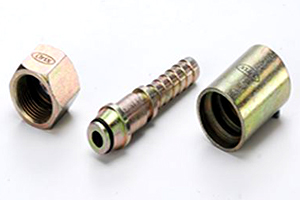

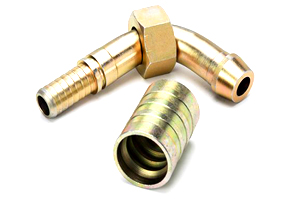

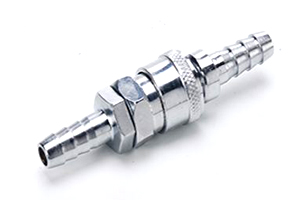

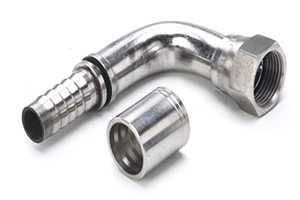

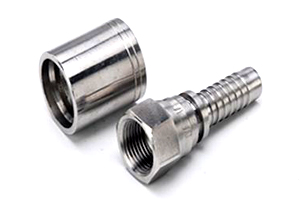

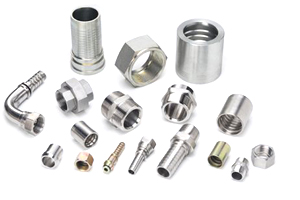

Hose Fitting

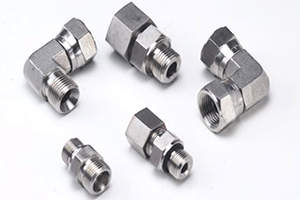

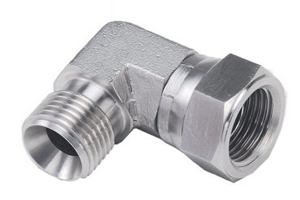

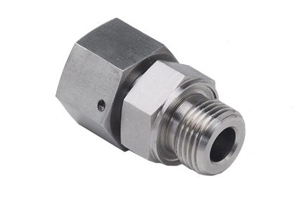

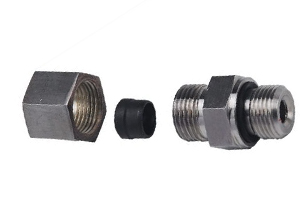

Hydraulic Fitting
