SPECIALITY EQUIPMENTS

Blastline offers a variety of Blast Room designs and room configurations which allow us to design a blast room facility uniquely tailored to meet the economic production, safety, and environmental concerns of each customer. This brochure will provide an overview of the blast rooms, abrasive recovery, recycling, and ventilation solutions offered by Blastline.

Blast room system is used in a wide range of industries that require surface preparation prior to the application of a protective coating. The surface of the workpiece is cleaned by a mixture of abrasive and high-pressure compressed air being directed at the workpiece by a blast nozzle. The blast room also provides lighting & ventilation for the operator’s safety.

Compared to open-air blasting, the controlled environment of a blast room has many advantages that justify the investment. Confining abrasive blast operations to a controlled, clean environment enables efficient abrasive recycling which has huge cost savings over using single-use abrasive.

Our design engineers can come up with a bespoke solution so that the resulting manual blast room caters to your every production needs, working with you throughout the design process, including helping you to choose what accessories you want to fit the system with. We provide a suitable, customized service, helping you sort through all the options to capitalize on any existing facilities and decide on specifications in terms of the professional sandblasting system’s dimensions and features

AFTER COOLERS

Atmospheric air entering a compressor contains water vapor. The compression process concentrates these water vapors. Once the air travels downstream, the vapor cools and condenses into liquid. If not removed, it contaminates the entire compressed air system and causes corrosion. This corrosion in turn leads to air leaks, pressure drop and scale formation. Products and processes are ruined, resulting in lost production time.

Air-Cooled After Coolers provide economical cooling by utilizing ambient air to cool the hot compressed air from an air compressor. Discharge air from an air compressor is generally 180°F – 350°F, depending on the type of compressor. With a properly sized after cooler, as much as 60% of the water in compressed air can be removed.

Categories: Blasting, Speciality Equipments

AIR-COOLED AFTER COOLER WITH MOISTURE SEPARATOR

OMI – ITALY

MINAA– UK

AIR DRYER SYSTEM WITH AIR COOLER

SCHMIDT – USA

This System effectively provides cooler, cleaner, and drier air to your blasting system while maintaining a negligible drop in pressure. Wet air causes flash rusting, clogs blast pots with damp abrasives, damages control systems, and reduces productivity. Drier air reduces wear, downtime, and maintenance, saving time and money.

  • Compact, vertical airflow design for improved efficiency.
  • Skid mounted with forklift pockets and full-load lifting eyes for portability; Stationary, Portable, and custom systems available
  • Protective bar grating over the radiator
  • Pneumatic fan motor standard; Electric fan motor available
  • Choice of system type to meet your specific application requirements: Aftercooler (ACS) or Air Dryer (ADS)
  • Air Dryer Systems units use deliquescent; therefore the vessels are hot-dipped galvanized to protect your investment

Categories: Blasting, Speciality Equipment

AIR PURIFIER

ACF – FRANCE

The air purifier provides the ideal solution for humidity problems encountered during blasting. It protects the pneumatic tools from oxidation, formation of ice, and breakdowns.

Compressed air contains water – causing oxidation, formation of ice, and clogs that cause breakdowns, losses in yield, and premature wear. This inconvenience could be eliminated with the type Z Purifier (sandblasting). The Purifier can be connected to the air hose linking the air compressor to the pneumatic tool. For optimal output, it is recommended to install the device as close as possible to the tool and as far away as possible from the compressor.

Categories: Blasting, Speciality Equipment

AIR RECEIVERS

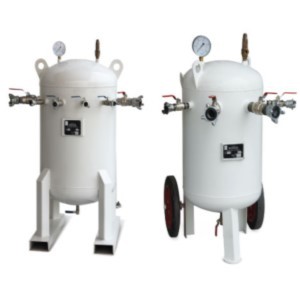

AIR RECEIVER CUM HIGH VOLUME MOISTURE SEPARATOR

Air receiver tanks not only serve as temporary storage but also allow your system to perform more efficiently. Rated to handle up to 800 / 1600 / 3000 CFM with less than 1% pressure drop through the separator.

Because of the immense pressure they contain and their importance to the system, they must be built to be exceptionally durable and strong.

Precision-engineered stainless steel coalescing element traps moisture as the compressed air expands inside ASME coded pressure vessel. Moisture separators help reduce the amount of moisture in the blasting system, resulting in a smoother, more even flow of abrasive and reduced contamination of controls.

There are many types of applications requiring air receiver tanks, including improving speed or torque, storage to protect from pressure fluctuations, storage to meter a high flow-rate application into a system, and more.

No matter the use, it’s important to size it to your needs. We can size a tank based on the compressor output, system size, and air demand cycles.

Categories: Blasting, Speciality Equipment

MINAA – UK

DEHUMIDIFIERS

REFRIGERANT DEHUMIDIFIERS

  • Highly efficient dehumidification coil
  • Low noise ventilation fan
  • Hygrostat automatically stops the machine when not needed (accessories)
  • Electronic defrost system
  • Environmental friendly refrigerant R134A
  • Handle and wheels for easy movement
  • Nonstop water discharge option
  • Additional heating coil 1,000 W
  • Compact polymer casing

MUNTERS – SWEDEN

 XR SERIES – LIGHT WEIGHT SUITABLE FOR COMMERCIAL USE

Categories: Blasting, Speciality Equipments

DRYERS

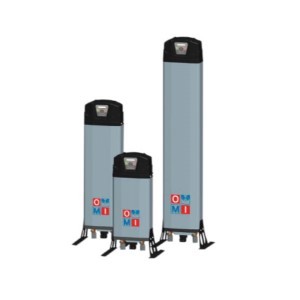

HEATLESS ADSORPTION DRYER

New series of adsorption dryers characterized by extremely reduced size and weight, ease of assembly thanks to the new aluminum design additionally guarantees excellent resistance to corrosion. The control system has been simplified while guaranteeing the programmability of the working times.



Various industrial applications, such as for example chemical, pharmaceutical, and laboratory facilities required high-quality compressed air; with adsorption desiccant dryer supplying a dew point air of -40°C, essential for these and other applications

OMI – ITALY

  • Working pressure: 7 bar
  • Inlet air temperature: 35°C (40° max)
  • Dew point at 7 bar pressure: -40°C
  • Work/Purge cycle: 5/5 min.
  • Regeneration air consumption: 10/15% of nominal flow rate
  • Standard Voltage: 230V/1ph/50Hz

Categories: Blasting, Speciality Equipment

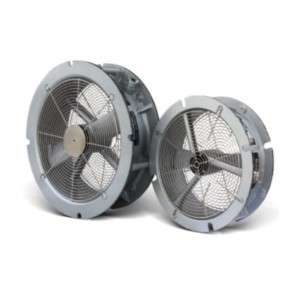

EXHAUST / INTAKE FANS FOR BLAST BOOTH

Fans are of the belt driven axial flow type with polypropylene impellors. Bearings are sealed and the belt tunnel is sealed from the airstream. Eternal motors sit on large adjustable plates. Fan cases have integral access doors. A finger guard protects the fan inlet.

Categories: Blasting, Speciality Equipment

FUME EXTRACTOR

AIR SYSTEMS – USA

This fume extractor provides 750 cfm flow through a 13″ hood and is deal for welding and soldering applications where large flow volume is required. With 270 degrees movement and a 10-foot arm, it is easy to positions the hood next to the workpiece. The pleated pre-filter and HEPA filter remove 99.97% at 0.3 microns and meets the OSHA permissible Exposure Limit (PEL for hexavalent chromium of 5 μg/m3



  • 115 VAC motor, 12.5 amps
  • 13-inch fume capture hood with adjustable flow damper-optional hood light
  • HEPA Filter, 99.97%, UL-586 approved, DOP Tested 1000 cfm flow rate
  • 6-inch diameter, 10 ft. ducted arm with 270-degree movement
  • 750 cfm flow with 10 ft. arm with 270-degree movement
  • Filter change indicator
  • Steel Cabinet
  • 24″ x 24″ x 1″ pleated pre-filter holder
  • Lift-up filter door for easy access filter change 5″ Heavy Duty Casters
  • 5″ Heavy Duty Casters

LARGE PORTABLE FUME EXTRACTOR

Categories: Blasting, Speciality Equipments

GASOLINE POWERED BLOWER

  • Lightweight portable blower
  • 127 cc Briggs & Stratton motor (Approx. 4 HP)
  • 8″ intake & exhaust
  • Aluminum non-sparking blower wheel
  • Polyethylene fan housing & safety guards
  • Powder-coated tubular steel frame, dual handles
  • Meets EPA and CAL/OSHA emission standards
  • 5-foot remote flexible steel exhaust hose with custom gas-tight muffler
  • To prevent intake of CO exhaust
  • Weight: 57 lbs. with muffler


Categories: Blasting, Speciality Equipment

INDUSTRIAL EVAPORATIVE COOLING

Portable ventilators and cooling products, serve virtually every major industry that utilizes industrial fans for safety and maintenance. A complete unit that creates a fine cooling mist, reducing the ambient temperature by a maximum of 40°F.



  • Heavy-duty, 2-speed fan motor delivers 5,280 CFM
  • Fixed guide vanes improve airflow
  • Fan head oscillates in 450 arc and tilts 180 up and down
  • Large semi-pneumatic wheels for easy mobility
  • High performance, the tri-plex pump will accommodate upto 5 additional misting rings
  • Uses standard garden hose connection and 115V electric circuit
  • GFCI receptacle for added safety
  • Completely enclosed base protects the pump, pump motor, and water filter


Categories: Blasting, Speciality Equipment

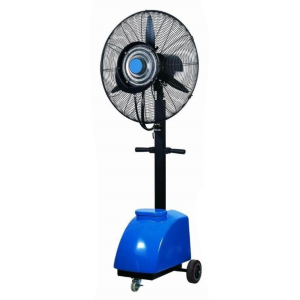

MIST FAN

LARGE CENTRIFUGAL BLOWER

AIR SYSTEMS – USA

Custom blowers could be designed to meet the most demanding requirements at steel mills, shipbuilding companies, and power generating stations. These are available in a wide variety and style of inlet & outlet flange size. The blower shown here is a 15 HP electric with a 14″ inlet and outlet flange set on a 4-way steel forklift skid and designed to deliver high static pressure and high cfm output for maximum lengths of ducting.


  • 8500 cfm free flow
  • 9″ W.G. static pressure @ 4200 cfm output
  • TEFC 15HP motor
  • Sealed NEMA 4 on/off switch box
  • 230/460 VAC, 3-phase motor
  • User wired per NEC requirements
  • 14″ intake and exhaust flange
  • Welded steel safety guards on inlet and exhaust
  • An adjustable flow control gate
  • Forklift guide on all four sides plus sling hooks
  • Custom variations available

    Categories: Blasting, Speciality Equipment

PORTABLE AXIAL VENTILATOR WITH FLEXIBLE DUCT HOSE

PORTABLE AXIAL VENTILATOR – FEATURES

  • Aluminum blades compact in size, easy to operate
  • Single-phase condenser motor eliminates the problem of overheating of three-phase motors
  • Aluminum blades have been subject to balance correction with computer
  • Diameter: From 180m/m to 1000m/m
  • Length: From 1M to 20m.
  • Vinyl polyester ventilation air duct house
  • External wear strips
  • Custom sizes available on request

FLEXIBLE DUCT HOSE – FEATURES

Categories: Blasting, Speciality Equipment

PORTABLE BLOWER

  • Dynamically designed fan housing optimizes airflow efficiency
  • Protective guards meet the safety standard
  • Air ducting can be connected at inlet or outlet ends
  • All component are coated for wear-resistant
  • The impeller is designed for high static pressure providing a higher airflow rate
  • Diameter is equipped with heavy-duty locking caster wheels and adjustable angle for easy mobility and setup


    Categories: Blasting, Speciality Equipment

PORTABLE COOLER

  • When the temperature rises, keep workers cool and working at their best with our evaporative coolers. Using the process of evaporation, the single-speed portable evaporative cooler can easily reduce the temperature in all your hard-to-cool areas. A comfortable worksite is a productive work site.
  • Large airflow, auto pump shut-off, and easy-roll casters make this cooling monster seems like gliding on air. It cools a huge 4000 sq. ft. area using just tap water and 115V.

    Categories: Blasting, Speciality Equipment

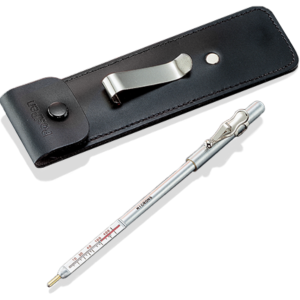

POSIPEN

  • Can be used on small, hot, or hard-to-reach surfaces
  • Easy-to-Use
  • Lightweight – easy to carry, just like a ballpoint pen
  • Rugged – not affected by mechanical shock, acid, oil, water, and dust
  • No user adjustment required
  • Highly wear-resistant probe tip for long life and continuous accuracy
  • Certificate of Calibration showing traceability to PTB included (Long Form)

    Categories: Coating Thickness, Speciality Equipment
    Tags: Inspection Instruments, QA/QC Instruments

MAGNETIC PULL-OFF COATING THICKNESS GAGE

PosiPen has a very small, unique magnet that can be placed with pinpoint accuracy on extremely small parts, and on peaks and valleys. Ideal for measuring non-magnetic coatings such as paint, enamel, plating, and hot-dip galvanizing on steel.

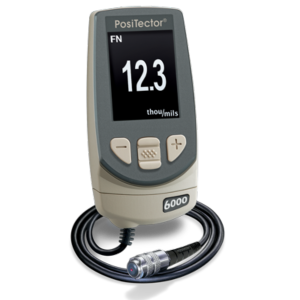

POSITECTOR 6000

COATING THICKNESS GAGES FOR NON-METAL SUBSTRATES

Non-destructively measures a wide variety of applications using proven ultrasound technology. Measure coating thickness over wood, concrete, plastic, and more. Advanced models measure up to 3 layers with graphics.



  • Ready to measure – no calibration adjustment required for most applications
  • Solvent, acid, oil, water, and dust resistant – weatherproof
  • Wear-resistant ruby probe tip, for long-lasting calibration
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST or PTB included (Long Form)



Categories: Coating Thickness, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

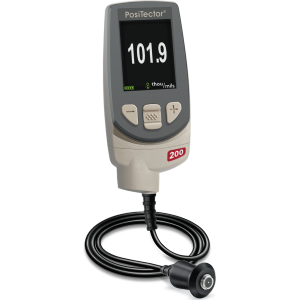

POSITECTOR 200

Rugged, fully electronic coating thickness gauges use magnetic and eddy current principles to measure coating thickness on both ferrous and non-ferrous metals, accurately and quickly.



  • Ready to measure – no calibration adjustment required for most applications
  • Solvent, acid, oil, water, and dust resistant –  weatherproof
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST or PTB included (Long Form)



Categories: Coating Thickness, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

COATING THICKNESS GAGES FOR ALL METAL SUBSTRATES

POSITECTOR BHI

Measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic



  • Easy-to-read digital display
  • Comparable to 934-1 Barcol Hardness Tester
  • The lightweight, portable device can be used in any orientation
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST included (Long Form)



Categories: Hardness, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

BARCOL HARDNESS IMPRESSOR

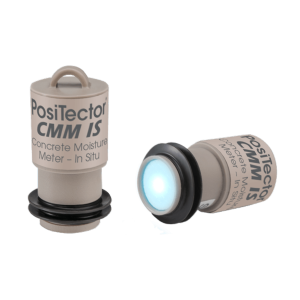

POSITECTOR CMM IS

PosiTector CMM IS (concrete moisture meter in-situ) probes and free mobile app guide users through the ASTM F2170 documentation criteria. View and record readings wirelessly with your Apple or Android smart device, or PosiTector DPM Advanced gage



  • Measure and report relative humidity (RH) and temperature in concrete floor slabs in conformance with ASTM F2170
  • Fully reusable Smart Probes with included Calibration Check Chambers for optimal storage conditions and faster acclimation
  • No need to open the hole or remove the cap. Probes remain powered on for up to 3 weeks and broadcast wirelessly via Bluetooth while in situ
  • No consumables required – Combined sleeve and probe design simplifies the ASTM F2170 installation process
  • Rapid response precision probes provide accurate, repeatable readings
  • Certificate of Calibration showing traceability to NIST included (Long Form)



Categories: Concrete Moisture, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

IN SITU CONCRETE MOISTURE (RH) METER

POSITECTOR DPM

Measures and records climatic conditions including Relative humidity, air temperature, surface temperature, dew point temperature, wind speed and the difference between surface and dew point temperatures.



Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7, and US Navy NSI 009-32.



  • All readings are constantly updated and displayed simultaneously
  • Solvent, acid, oil, water, and dust resistant – weatherproof
  • Fast response precision sensors provide accurate, repeatable readings
  • Auto Log mode records environmental parameters at user-selected time intervals
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST included (Long Form)



Categories: Climatic Conditions, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

DEW POINT METERS FOR ENVIRONMENTAL MONITORING

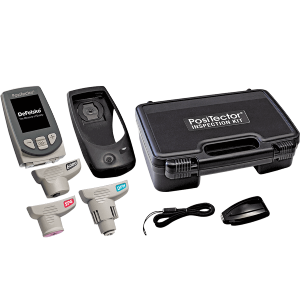

PosiTector Inspection Kits contain a PosiTector gage body (Standard or Advanced) with 3 probes – coating thickness, environmental and surface profile – and accessories in a convenient hard shell carrying case.



  • Available with your choice of Standard or Advanced Gage features
  • Each PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, UTG, SHD, and BHI probes easily converting from a coating thickness gage to an environmental gage, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
  • Select from 12 pre-configured kits or build your own custom kit
  • Certificate of Calibration showing traceability to NIST or PTB included (Long Form)



Categories: Inspection Kits, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

SELECT FROM A VARIETY OF GAGE BODIES AND PROBES

POSITECTOR INSPECTION KITS

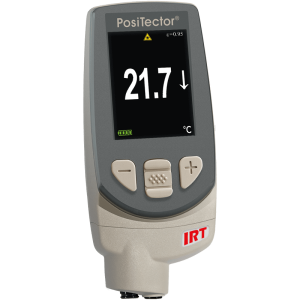

POSITECTOR IRT

INFRARED THERMOMETER

Non-contact surface temperature measurement



  • Button-activated laser pointer for accurate targeting
  • Selectable emissivity values – choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
  • Statistics Scan mode – continually displays/updates average, standard deviation, min/max surface temperature and number of readings while measuring one reading per second
  • Certificate of Calibration showing traceability to NIST included (Long Form)
  • 5.7:1 distance to spot ratio – ideal for measuring large areas
  • Smart Trend indicators identify rising, falling, or stable readings)



Categories: Climatic Conditions, Speciality Equipments

Tags: Inspection Instruments, QA/QC Instruments

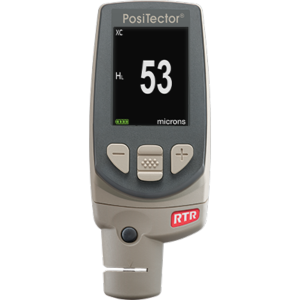

POSITECTOR RTR 3D

REPLICA TAPE READER TO MEASURE AND RECORD 2D/3D SURFACE PROFILE PARAMETERS

Digital spring micrometers measure and record surface profile parameters using Testex Press-O-Film™ replica tape.



  • Create a replica by burnishing tape on a surface and insert into the instrument. 3D imagery and 2D/3D parameters are displayed in seconds!
  • Reports common parameters: Ra, Rq, Rz, Rp, ­Rv, Rt, Rpc (2D), and Sa, Sq, Sz, Sp, Sv, and Spd (3D)
  • Ideal for field or laboratory use; flat, curved, or irregular surfaces
  • Certified and traceable to an accredited national laboratory
  • Download 3D.SDF image files for analysis in included PosiSoft or third party ­­­software
  • Certificate of Calibration showing traceability to PTB (for H and HL only) and NPL (for Ra and Rt) included (Long Form)



Categories: Speciality Equipment, Surface Profile

Tags: Inspection Instruments, QA/QC Instruments

POSITECTOR RTR H

SHORE HARDNESS DUROMETERS FOR THE INDENTATION HARDNESS OF NON-METALLIC MATERIALS

The handheld electronic instrument measures the indentation hardness of non-metallic materials. Two durometer models are available for different hardness ranges – Shore A and Shore D



  • User-adjustable measurement time with an on-screen countdown to conform to national and international standards
  • Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
  • Solvent, acid, oil, water, and dust resistant – weatherproof
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST included (Long Form)



Categories: Hardness, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

The handheld electronic instrument measures the indentation hardness of non-metallic materials. Two durometer models are available for different hardness ranges – Shore A and Shore D.



  • User-adjustable measurement time with an on-screen countdown to conform to national and international standards
  • Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
  • Solvent, acid, oil, water, and dust resistant – weatherproof
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST included (Long Form)



Categories: Hardness, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

SHORE HARDNESS DUROMETERS FOR THE INDENTATION HARDNESS OF NON-METALLIC MATERIALS

POSITECTOR SHD

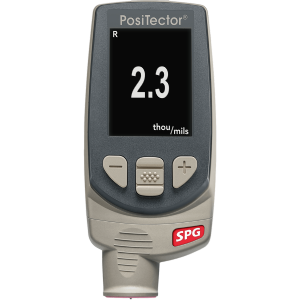

POSITECTOR SPG

SURFACE PROFILE GAGES FOR BLASTED STEEL, TEXTURED COATINGS AND CONCRETE PROFILE

Surface Profile Gages use a digital depth micrometer to measure and record peak to valley surface profile heights in preparation for the application of coatings



  • Solvent, acid, oil, water, and dust resistant – weatherproof
  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy – field replaceable
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • Fast measurement rate of over 50 readings per minute – ideal for quickly and accurately measuring large surfaces
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to PTB included (Long Form)



Categories: Speciality Equipment, Surface Profile

Tags: Inspection Instruments, QA/QC Instruments

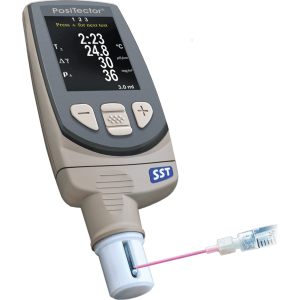

POSITECTOR SST

SOLUBLE SALT TESTER FOR MEASURING THE CONCENTRATION OF SOLUBLE SALTS ON METAL SURFACES

Measures the concentration of soluble salts (salt contamination) on metal surfaces in accordance with ISO 8502-6, 8502-9.



  • Conductivity probe specifically designed for ISO 8502-6, 9
  • Displays test duration, sample temperature, conductivity (µS/cm), and surface density (mg/m2 or µg/cm2)
  • Easy 1-2-3 gage interface guides users through the Bresle test method
  • Automatic storage of a background (blank) measurement – handy when performing multiple tests
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST included (Long Form)



Categories: Salt Contamination, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

POSITECTOR UTG

ULTRASONIC THICKNESS GAGE MEASURES WALL THICKNESS

Measures the wall thickness of materials such as steel, plastic, and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.



  • Precision ultrasonic transducers provide fast, accurate readings
  • Solvent, acid, oil, water, and dust resistant – weatherproof
  • Pre-programmed velocities – Simply select from a list of common materials or enter your own with ease
  • Min Scan mode-take continuous readings and record min/max thicknesses – ideal for quick inspection over a large area
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software



Categories: Material Thickness, Speciality Equipments

Tags: Inspection Instruments, QA/QC Instruments

POSITEST ADHESION TESTERS

POSITEST AT-A AUTOMATIC AND POSITEST AT-M MANUAL

Measures adhesion of coatings to metal, wood, concrete and other rigid substrates.



  • Select from four Stand-offs – 20 mm, 50 mm, 50×50 mm Tile and 50 mm C1583
  • Environmentally sealed enclosure – weatherproof, dustproof, and shockproof – meets or exceeds IP65
  • Inexpensive, single-use dollies eliminate cleaning for re-use and can be kept as a permanent record
  • Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces
  • 10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths
  • Calibrated and certified to ± 1% accuracy using a NIST traceable load cell
  • Certificate of Calibration showing traceability to NIST included (Long Form)



Categories: Adhesion, Speciality Equipments

Tags: Inspection Instruments, QA/QC Instruments

PULL-OFF ADHESION TESTERS

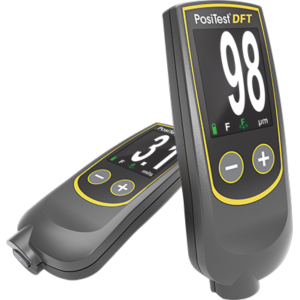

POSITEST DFT

COATING THICKNESS GAGE FOR ALL METAL SUBSTRATES

Measures coatings on metal substrates. It is the economical choice that retains the uncompromising quality of DeFelsko coating thickness and inspection instruments.



  • Available in Two Models – PosiTest DFT Ferrous or PosiTest DFT Combo
  • Fast, repeatable measurements – 60+ readings per minute
  • Ready to measure – No adjustment required for most applications
  • Zero or 1 Point Calibration Adjustment for complex applications
  • Onscreen averaging for up to 99 readings
  • Strong, wear-resistant, ruby-tipped probe
  • Adjustable display brightness for optimal visibility in all environments
  • Auto rotating display with rotation lock
  • Simple icon-based menu
  • Certificate of Calibration showing traceability to PTB included (Long Form)



Categories: Coating Thickness, Speciality Equipments

Tags: Inspection Instruments, QA/QC Instruments

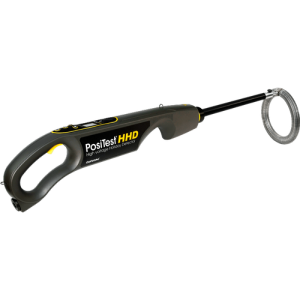

POSITEST HHD

HIGH VOLTAGE HOLIDAY DETECTOR

Detects holidays, pinholes, and other discontinuities using pulse DC



  • Lightweight, ergonomic design provides comfortable all-day use, reducing operator fatigue
  • Regulated pulse DC voltage output that won’t change under load – ±5% voltage accuracy
  • Voltage calculator feature – choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage
  • Extensive electrode options – choose from a wide range of rolling spring and flat wire brush electrodes or use electrodes from other manufacturers with optional adaptors – custom sizes available upon request
  • Long Form Certificate of Calibration included with each instrument



Categories: Pinhole & Porosity, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

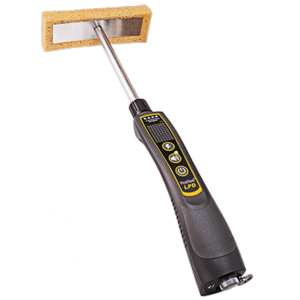

POSITEST LPD

LOW VOLTAGE PINHOLE DETECTOR FOR METAL AND CONCRETE SUBSTRATES

Detects holidays, pinholes, and other discontinuities in coatings on metal and concrete substrates.



  • GroundSense visibly reassures the user that the instrument is properly grounded
  • 4 voltage output options conform to a variety of standards
  • Weatherproof, dustproof, and shockproof – meets or exceeds IP65
  • Rugged, environmentally sealed enclosure
  • Two-year warranty
  • Certificate of Calibration showing traceability to NIST included (Long Form)



Categories: Pinhole & Porosity, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

POSITEST PC

NON-CONTACT UNCURED POWDER THICKNESS GAGE

Affordably measures uncured powder coatings using non-contact ultrasonic technology to predict a cured thickness.



  • A dedicated stand-alone unit is ready to measure right out of the box
  • Up to 4x faster measurement speed* – ideal for moving lines and swinging parts
  • No calibration adjustment required for most powders
  • Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop Software
  • Scan Mode continuously takes measurements – ideal for analyzing large areas



Categories: Coating Thickness, Speciality Equipment

Tags: Inspection Instruments, QA/QC Instruments

REACTION FAN

  • For 20 inch (50.8 cm) to 24 inches (60.96 cm) tank manways
  • 11,000 to 16,900 cfm (18,689 to 28,713 m3/h) at 80 PSIG
  • Use for fresh air supply or fume exhaust
  • Can be carried or rolled to the job site
  • Spark resistant cast aluminum housing and fan blade
  • Permanently lubricated bearings
  • Flanges mate with 20-inch (508mm) and 24-inch (610mm) API tank opening

    Categories: Blasting, Speciality Equipment

SMALL PORTABLE FUME EXTRACTOR

Designed for light Duty and Short Duration Welding, the small HEPA filtered portable fume extractor provides 230 cfm flow through a 5″ hood and magnetic base stand. Ideal for many small welding and soldering applications where large cabinet-style fume extractors are not practical, such as spot or benchtop welding. The features a removable slag tray, spark screen 3 pleated pre-filters, and a final HEPA filter (99.97% at 0.3 microns).



  • 2 each, 115 VAC, 800-watt vacuum motors with 15amp overload protector
  • Final stage HEPA filter, 99.97% at 0.3 micron
  • 70 dbA noise level at 3 feet w/ built-in noise suppressor
  • 230 cfm flow rate – variable speed
  • Fire retardant, 10ft, flexible
  • Dual handle assembly
  • Three pleated intermediate filters 2.5″ ID hose supplied with 2.5″ hose coupler for adding additional hose
  • 5″ fume capture hood with magnetic base stand supplied



Categories: Blasting, Speciality Equipments

TYPHOON BLOWER

Ideal for pneumatic machine – a Typhoon system consists of a blower with one or several air knives and tubes. Each system will be tailored specifically for a customer’s application when the customer can determine the air pressure (blow of force) needed to eliminate static charges and/or removing impurities. Dependent on the required air pressure, the capacity of the blower can be determined, offer the right blower.



  • Low noise level
  • Minimal maintenance
  • Cooler running bearings
  • Small dimensions
  • No vibration, and therefore complete dynamic stability
  • Easy installation
  • Pulsation-free discharge
  • Higher pressure ratio
  • Longer grease life
  • 0% oil-free air
  • Continuous duty



Categories: Blasting, Speciality Equipments

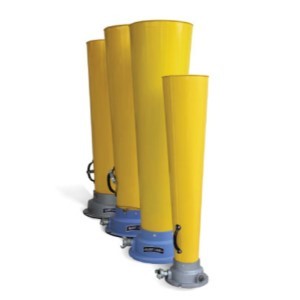

VENTURI BLOWER

MINAA– UK



The Venturi-style pneumatic air blower has a galvanized steel housing and cast aluminum base and uses compressed air or steam to ventilate vapors and fumes from underground storage tanks or other below-ground locations.

It has no moving parts and hence low maintenance. The housing is made from galvanized steel for corrosion resistance and can be replaced when it shows signs of wear. The base is made from lightweight cast aluminum and comes in standard base sizes. The blower comes with a static grounding lug to dissipate static electricity and prevent accidental ignition of vapors or fumes. It has a built-in steel handle for carrying. The air blower can operate at pressures up to 140 psi.

Venturi-style blowers, also known as Air Horns or Eductors, use the principles of the Venturi effect to vent hazardous vapors and fumes from below-ground sources. The base of the blower is connected to the underground tank or source where the fumes and vapors are present, and compressed air or steam is brought into the blower through a nozzle. Its narrow base constricts the compressed air or steam, which increases its velocity as it moves toward the vent at the top of the horn. This decreases the ambient pressure in the horn and creates a partial vacuum, drawing fumes up through the base and out through the vent.



Categories: Blasting, Speciality Equipment

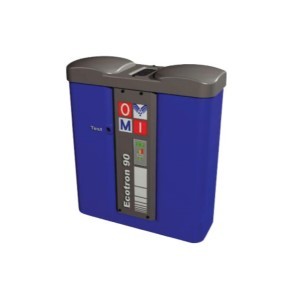

WATER OIL SEPARATOR

OMI – ITALY



The patented 2-stage filtering system adsorbs the residual amount of contaminants, without any need of complicated formula to dimension the unit. Such system, thanks to an electronic indicator, advises the operator when the filter element must be replaced.



  • It is suitable for every type of drain: manual, electronic, and timed.
  • The oil is kept in the separator, and only the depurated water is let out.
  • There is no need to dispose of the oil, but only of the filtering elements.
  • It is suitable for every type of oil and emulsion, whereas for poly-glycol oil, contact our Technical Department.



Categories: Blasting, Speciality Equipments

WILMS – GERMANY

This professional dehumidifier is best suited to avoid and eliminate damage in rooms, on inventory, and humidity sensible materials. This dehumidifier is like all other units – easily portable with large wheels and it is easily handled and operated with just one switch.



Categories: Blasting, Speciality Equipments

XRC LT SERIES – HIGH PERFORMANCE REFRIGERANT DEHUMIDIFIER

  • 3 sizes available, 30, 50, 75 liters per 24h, for a wide range of applications
  • Low-temperature operation capability
  • Operating range +5 to 30 degree C
  • High efficient dehumidification coil
  • Rigid stainless steel casing for professional use
  • Low noise ventilation fan
  • Hygrostat automatically stops the machine when not needed (accessory)
  • By-pass valve defrost system
  • Environmental and ozone-friendly refrigerant R407C
  • Handles and wheels for easy movement
  • Nonstop water discharge option by pump
  • Antibacterial air filter as standard


Categories: Blasting, Speciality Equipment

XRC SERIES – SUITABLE FOR PROFESSIONAL USE

  • 4 sizes available, 25, 40,55 & 90 liters per 24h, for a wide range of applications
  • Operating range +12 to 30 degree C
  • Rigid stainless steel casing
  • High efficient dehumidification coil
  • Low noise ventilation fan
  • Hygrostat automatically stops the machine when not needed (accessories)
  • Electronic defrost system
  • Environmental and ozone-friendly refrigerant R407C
  • Handle and wheels for easy movement
  • Nonstop water discharge option by pump
  • Antibacterial air filter as standard


Categories: Blasting, Speciality Equipment
